3D Data Pro was engaged to capture and prepare a large-scale mural for integration across acoustic panels within a school auditorium. We performed high-resolution photographic capture using controlled lighting and an elevated, leveled setup to ensure minimal distortion and consistent image quality. The imagery was processed and composited into a seamless, color-calibrated file suitable for large-format printing, with final outputs reaching approximately 40,000 pixels in height to support scaling from a 5-foot mural to nearly 15-foot panel installations.

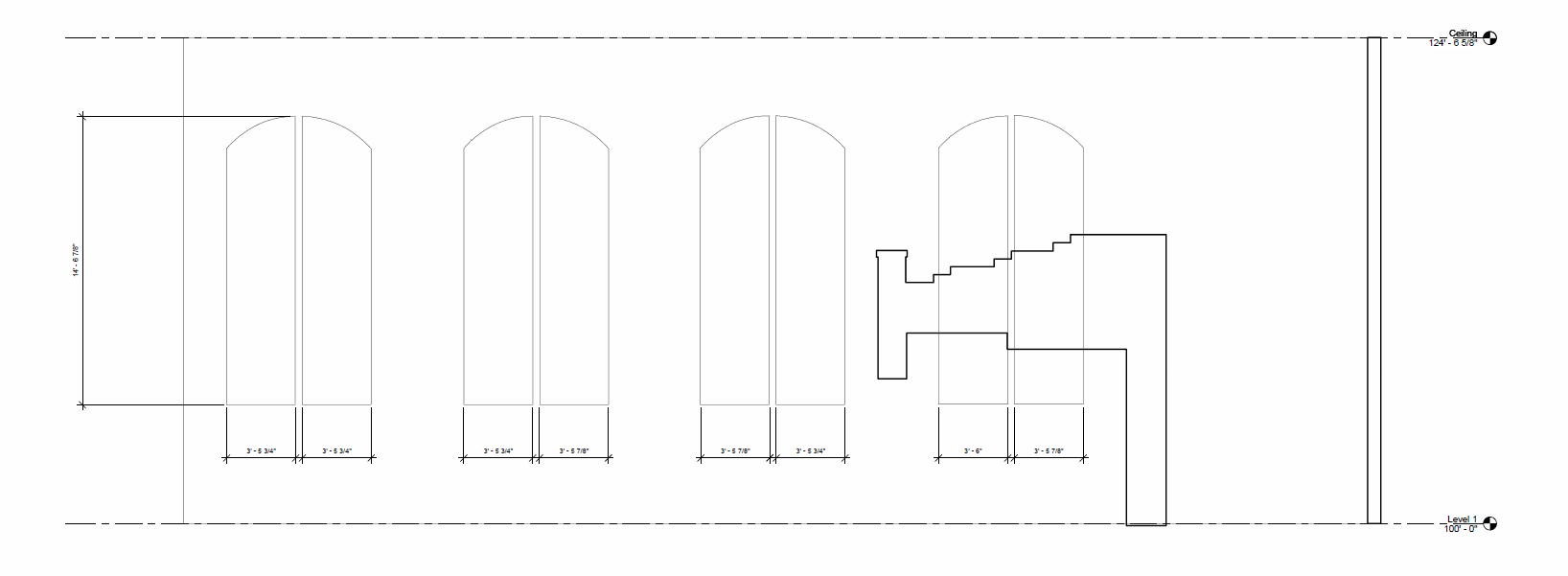

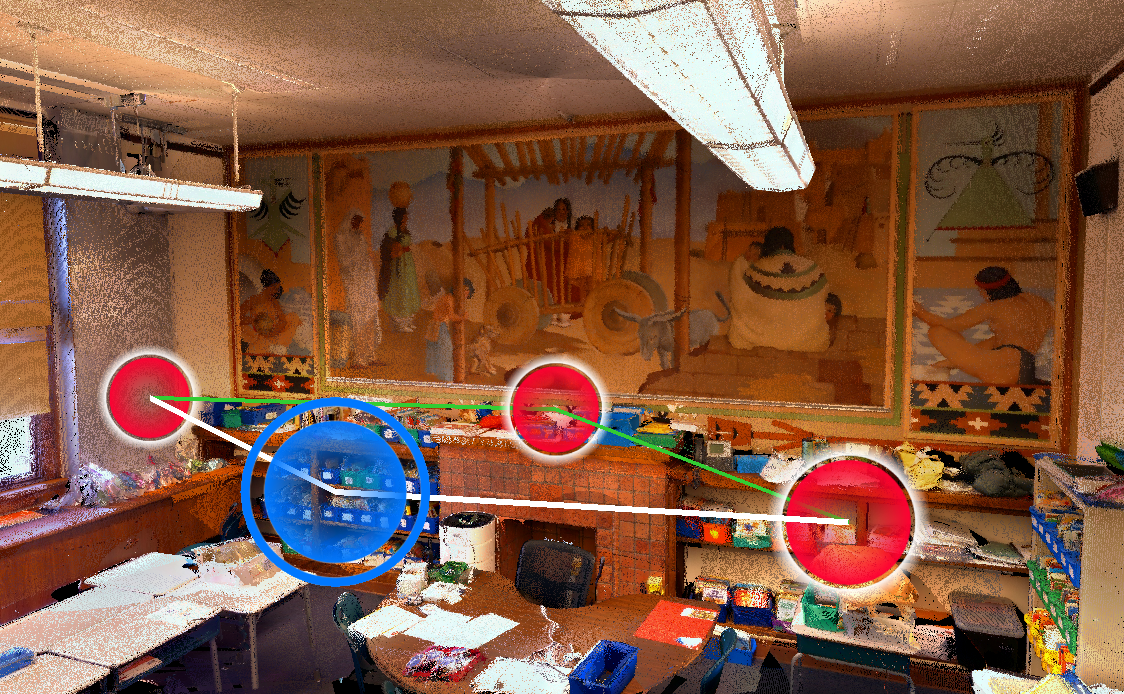

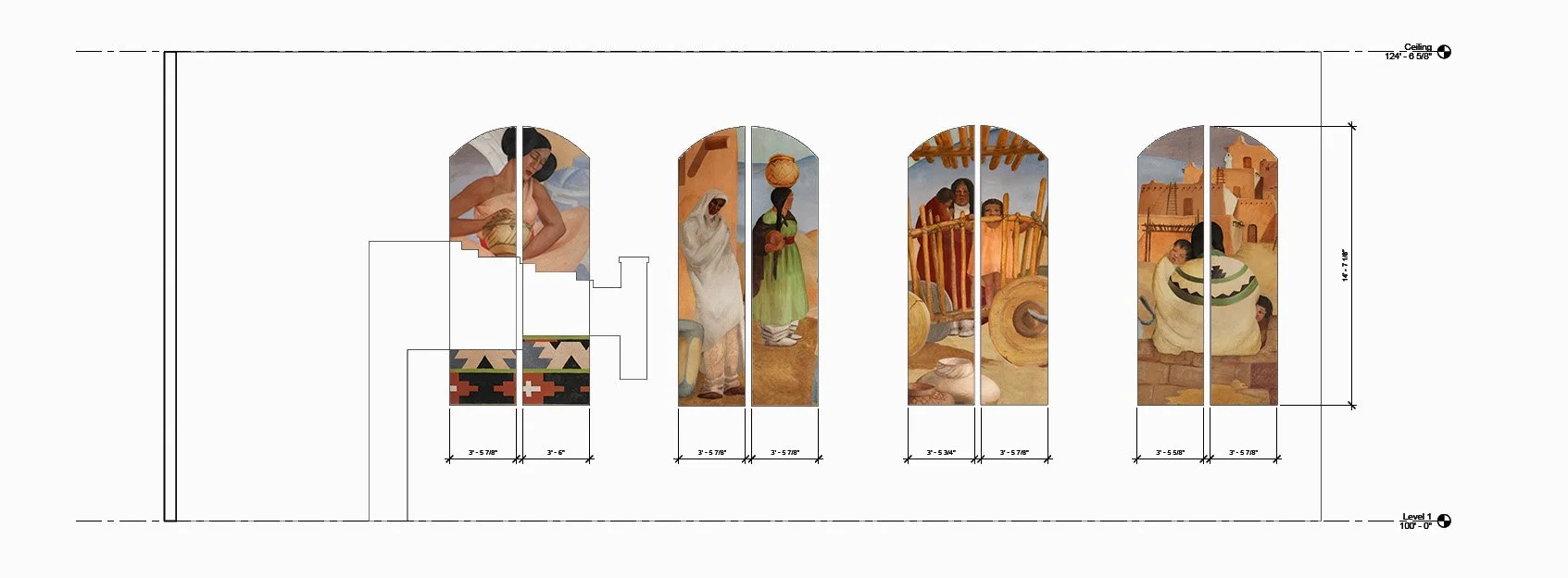

In parallel, our team utilized LiDAR scanning to document the existing space and accurately locate future acoustic panel positions. We developed a coordinated Revit model and exported CAD drawings to align the mural artwork precisely with the panel layout. The result was a fully integrated, print-ready and construction-ready deliverable that supported both design intent and efficient installation.
